Barbed Wire/Razor Barbed Tape

OVERVIEW
Introduction:

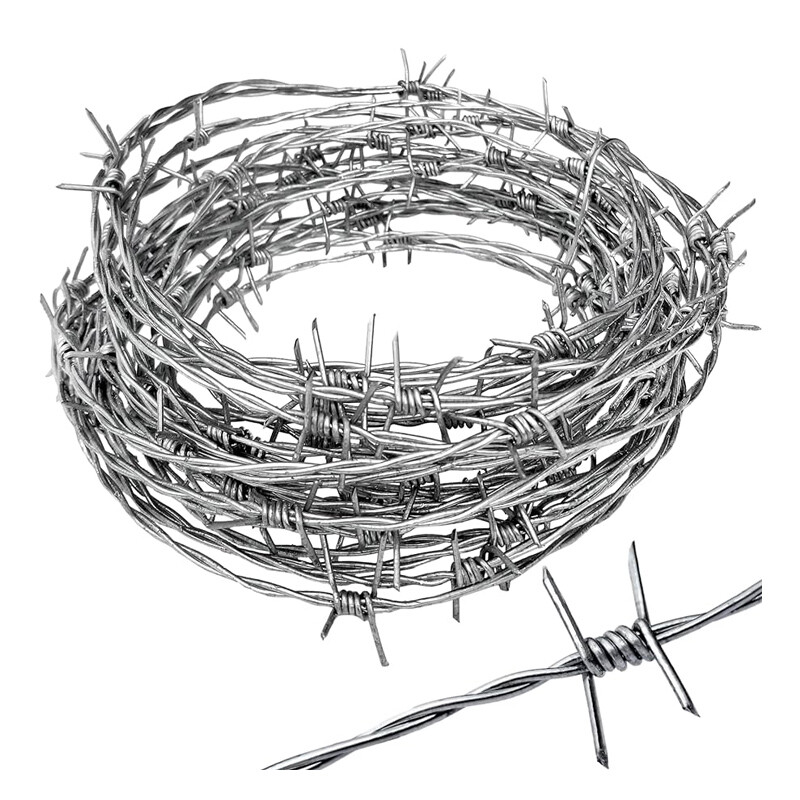

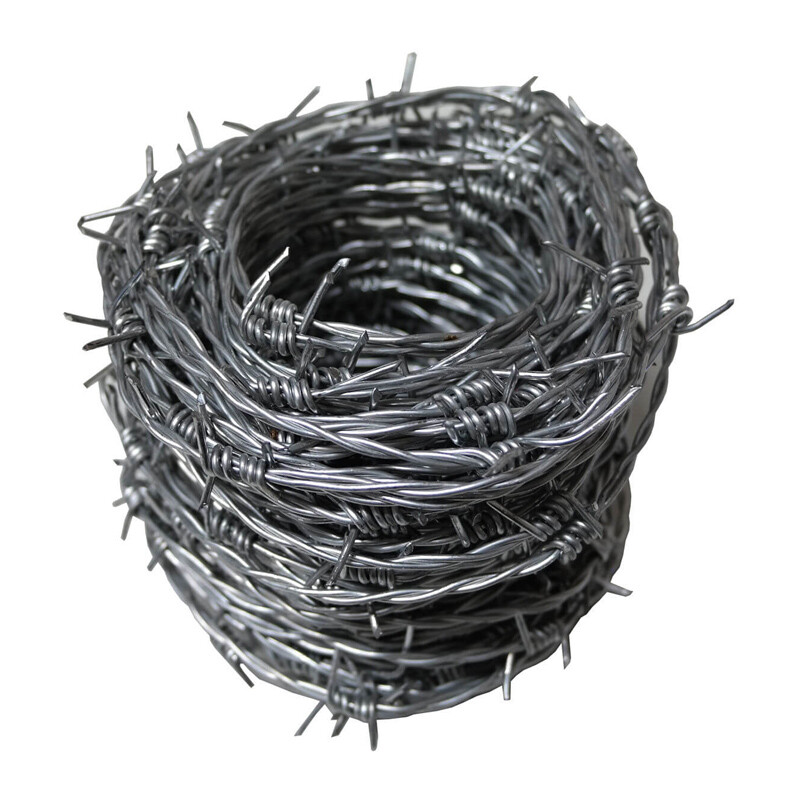

Barbed wire is twisted and braided by a fully automated barbed wire machine. It is commonly known as thorn barb, barbed wire, and barbed wire.

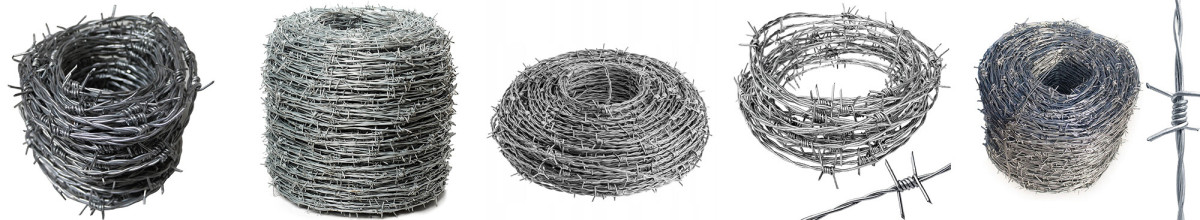

Barbed Wire.jpg


Features: simple structure, easy installation, beautiful and practical.


Raw materials: high-quality low-carbon steel wire. Surface treatment process: electrogalvanizing, hot-dip galvanizing, plastic coating, and plastic spraying. Available in blue, green, yellow and other colors.


Barbed Wire.jpg

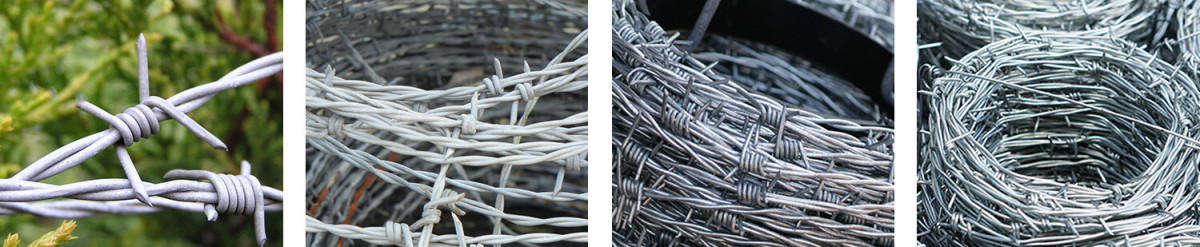

Three twisting methods of barbed wire: forward twisting, reverse twisting, and forward and reverse twisting.

Forward twisting method: twist two or more iron wires into a double-strand iron wire rope and then wrap the barbed wire around the double-strand iron wire.

Reverse twisting method: first wrap the barbed wire around the main wire (that is, a single iron wire) and then add another iron wire to twist and braid it into a double-strand barbed wire.

Forward and reverse twisting method: twist and braid in the opposite direction from where the barbed wire is wrapped around the main iron wire. It is not twisted in one direction.

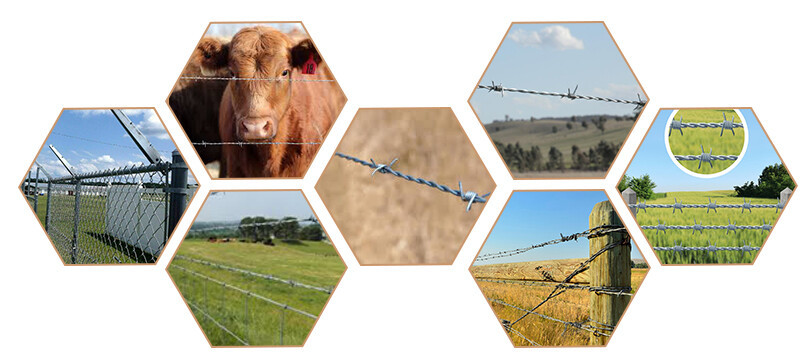

Application: Widely used in isolation and protection nets for industry, agriculture, animal husbandry, grassland boundaries, railways, highways, and forest protection, etc.





Specifications of Barbed Wire
Gauge of
Strand and Barb in B.W.G.
Approximate Length per kilogram in Meter
Barbs Spacing 3"Barbs Spacing 4"Barbs Spacing 5"Barbs Spacing 6"
12 x126.06176.75907.27007.6376
12 x147.33357.90518.30158.5741
12-1/2 x 12-1/26.92237.71908.30228.7221
12-1/2 x 148.10968.8149.22429.5620
13 x137.98088.8999.572110.0553
13 x148.84489.689910.292310.7146
13-1/2 x149.607910.613411.470511.8553
14 x1410.456911.659012.542313.1752
14-1/2 x14-1/211.987513.367114.378115.1034
15 x1513.892715.494216.666617.5070
15-1/2 x15-1/215.349117.114418.406019.3386
Barbed Wire Specification
TypeWire Gauge (SWG)Barb Distance (cm)Barb Length (cm)
Electric Galvanized Barbed Wire; Hot-dip zinc plating barbed wire10# x 12#7.5-151.5-3
12# x 12#
12# x 14#
14# x 14#
14# x 16#
16# x 16#
16# x 18#
PVC coated barbed wire; PE barbed wirebefore coatingafter coating7.5-151.5-3
1.0mm-3.5mm1.4mm-4.0mm
BWG11#-20#BWG8#-17#
SWG11#-20#SWG8#-17#
PVC PE coating thickness: 0.4mm-0.6mm; different colors or length are available at customers request.

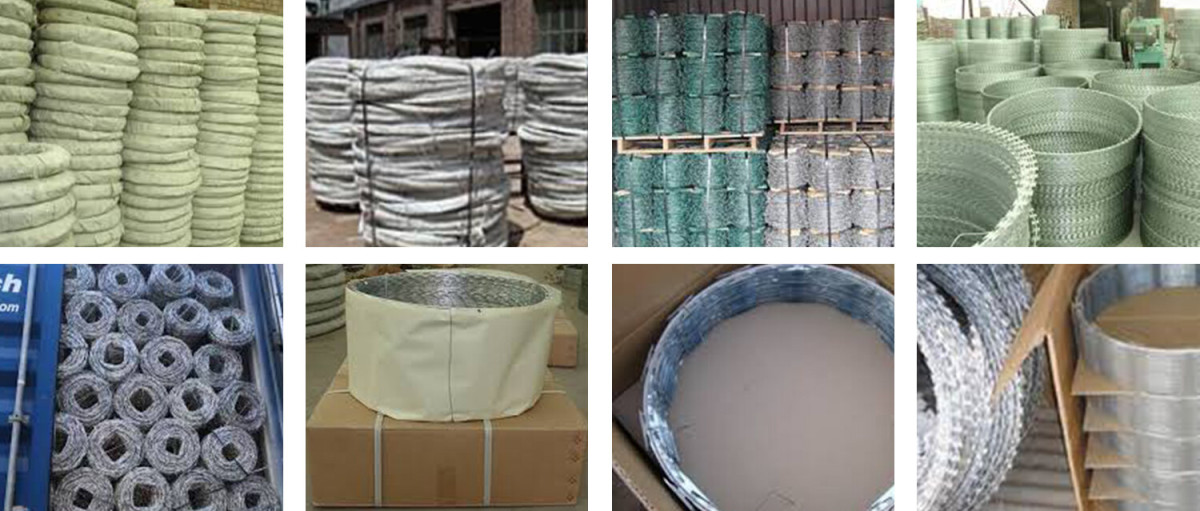

Packaging And Transportation

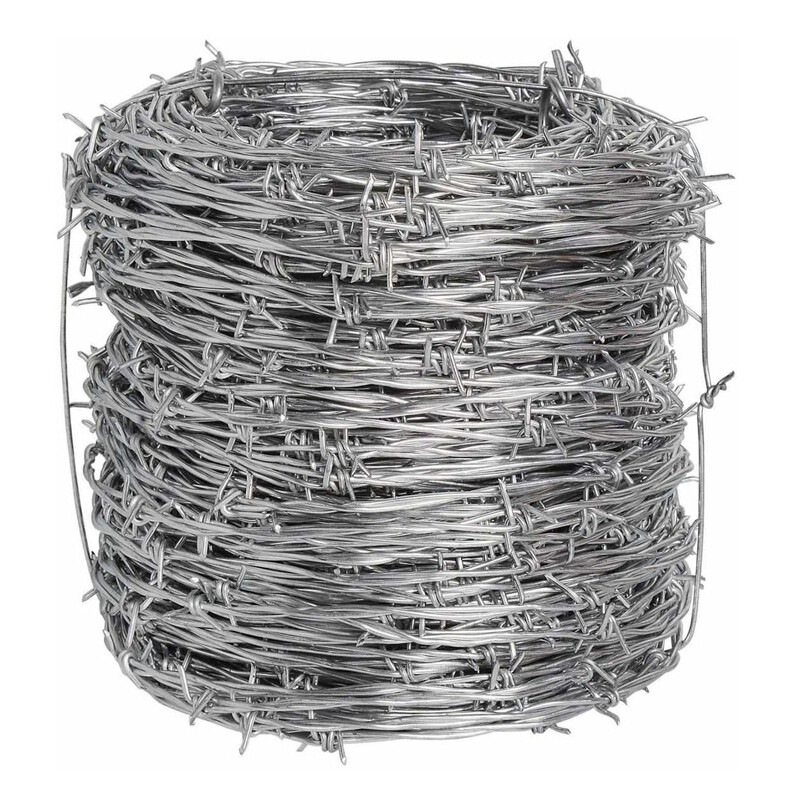

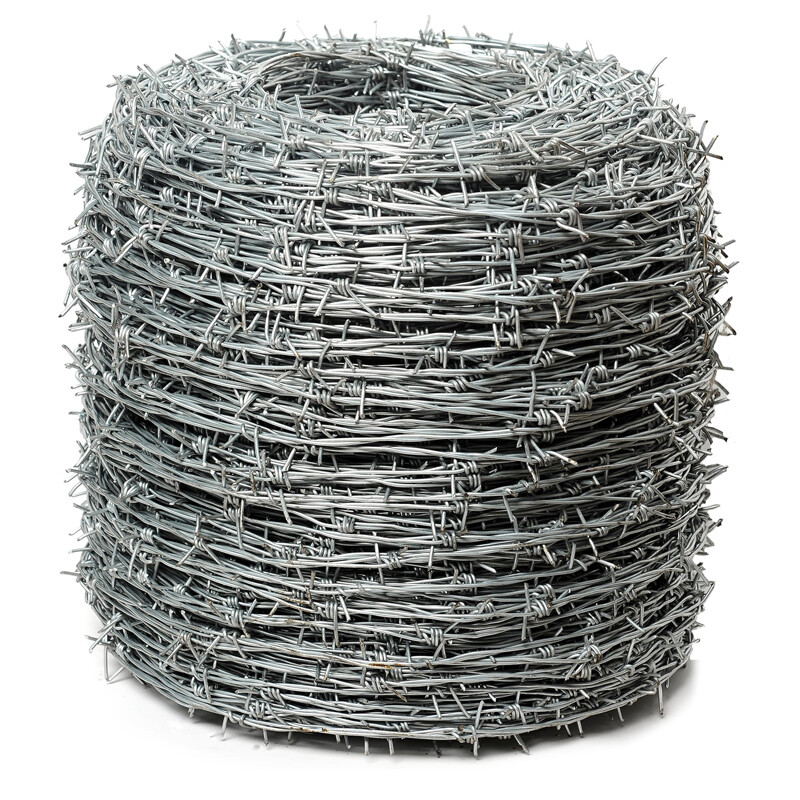

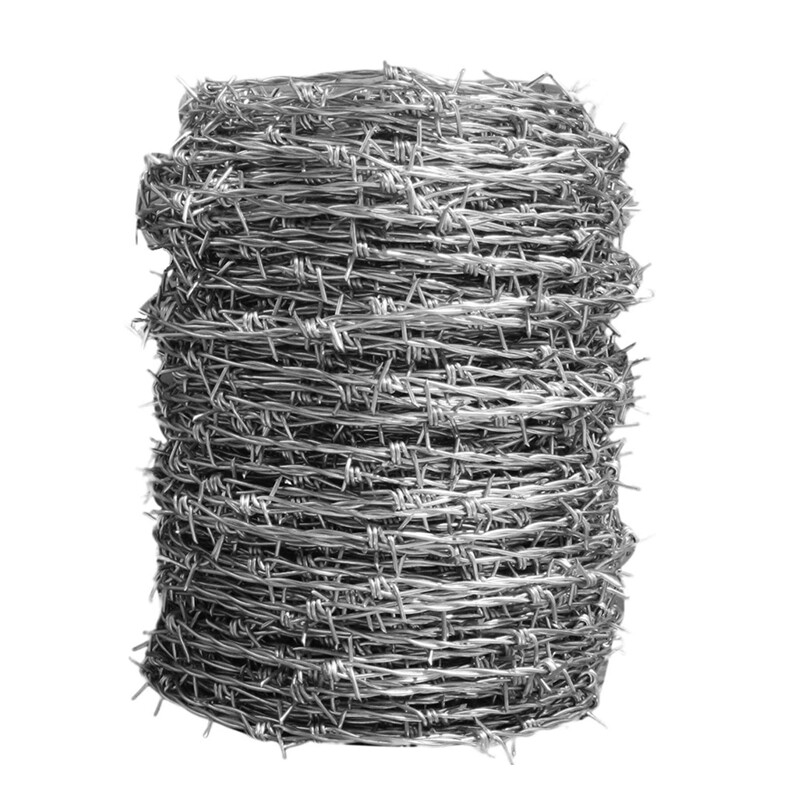

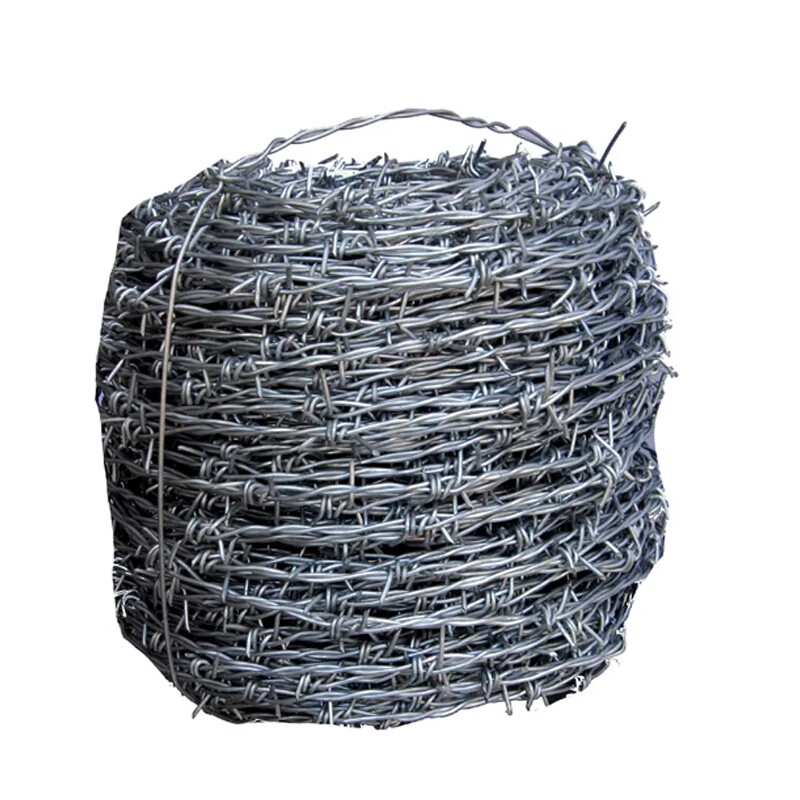

Packaging: Reel, net weight 25kg or 50kg per reel, wrapped with PVC tape.




FAQ

Q1: What are your main products for sale?
A:Shandong Hongsheng Steel Co., Ltd. is a leader in technology and management in the industry. It has been committed to providing global production, sales and import and export business of a series of galvanized products such as galvanized steel coils, color-coated coils, and corrugated sheets



Q2:Can you give me the product catalog?
A:We can send you a word or PDF product catalog with attachment by email.


Q3: What are your payment methods?
A: normal T/T and L/C,but we can accept the others as well.30% at order ,balance up against the invoice and packing list.



Q4: Does the factory have the goods in stock?
A: You can leave your e-mail and our sales will contact you. You can consult our sales. If you have any special requirements on the aluminium products. We can customize for you.



Q5: Are your products reliable in quality?
A: Products are sold to the world All over the world, it enjoys a high reputation in the world, and has established long-term and deep cooperative relations in more than 40 countries and regions such as South America, Southeast Asia, the Middle East, Africa, and Central Asia. It has become an international brand in the steel plate coating industry.



Q6: How long can I receive my goods?
A: It depends on the products you ordered. Generally, it needs 30-40 days.
We have complete production lines for meeting your needs of products quality and production speed to make sure that our products can get to you faster.
